Communications

● Uplink: GPRS/3G/4G/Ethernet/ChintNet (optional)

Auxilliary Terminals

● RS485-1: local maintenance

● RS485-2: remote meter reading

● M-BOX: tamper event detection

LED Display

● Run: running indicator

● Alarm: tampering event indicator

● Signal: signal strength

● Network: state of network connection

● R/T: communication indicator

Maintenance

● Self-disgnosis and self-restore

● Local data read-out over ethernet, bluetooth and RS485

● Firmware upgrade (local or remote)

Data Collection

● Real time collection

● Regular collection

● Retrieval collection

Environmental

● Operating range limit: -40° C to +75° C

● Storage range limit: -40° C to +85° C

● Relative humidity: ≤ 95%RH

Parameter setting

● Communication parameters

● Meter archives and reading rules

● Local and remote setting supported

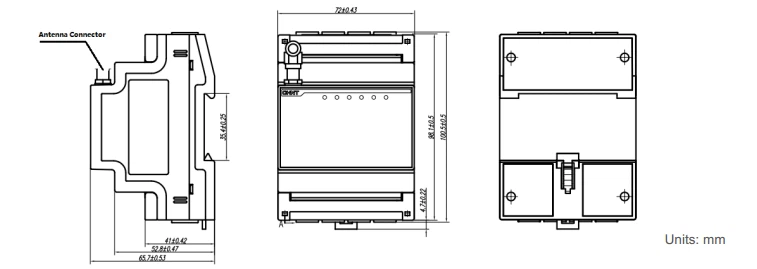

Dimensions and Weight

● Dimensions: 98.1mm× 72mm× 65,7mm (L x W x H)

● Weight: 0.6 kg (Approx.)
