Three Phase Smart Meter With LCD Display
Type:DTSU666
●DIN35mm standard rail type installation, LCD display
●With active energy metering and voltage, current, power, power factor and other electrical parameter measurement functions
●With RS485 communication interface,support modbus-RTU communication protocol
- Product Introduction
SPECIFICATIONS
Measurement ● Connection type: 3P4W ● Accuracy: Class 1.0 for active,Class 2.0 for reactive | LED Indication ● Pulse Indication |
Voltage ● Nominal voltage (Un): ● Operating range: 0.85Un ~ 1.15Un ● Power consumption: ≤1W, 8VA | Measured Values ● Total kWh , kvarh ● Instantaneous kW,kvarh,Vrms,Irms, frequency,power factor |
Current ● 1.5(6)A ● 5(80)A | Environmental ● Working temperature range:-10℃ to +45℃ ● Limited temperature range:-25℃ to +75℃ ●Relative humidity(Annually average): ≤ 75% |
Frequency ● 50Hz or 60Hz | Dimensions ● Dimensions: 98mm x 65mm x 72mm |
LCD Display ● 7 character of 7 segment display ● Digital size: 5.3mm x 2.8mm | Communications(Optional) ● RS485 ● Protocol:Modbus-RTU |

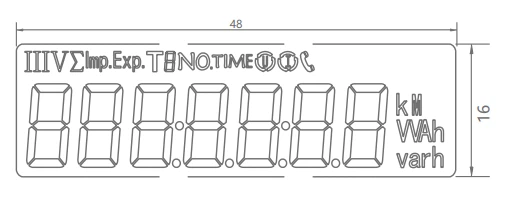

LCD INDICATION
Units: mm
METER DIMENSIONS
Units: mm
