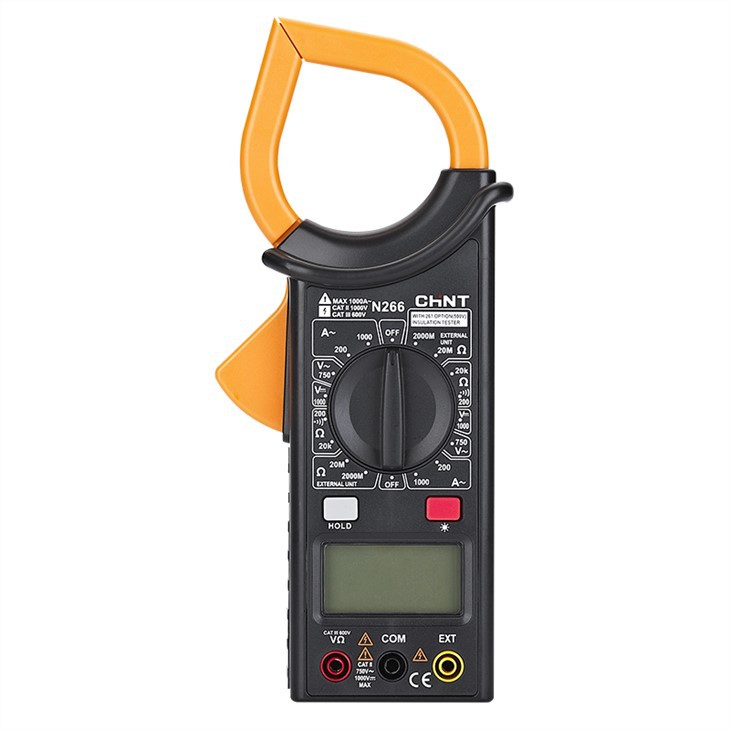

N266 series digital clamp meter
Introduction:
N266 and N266F are kind of trinity half digital pincer-like meter with stable performance, safety and reliability. Adopting A/D converter with large-scaled collected circuit and equipped with overload protecting circuit for overall instrument, it is characterized with all range overload protection, low voltage indication, data hold, inductive indication and fast measurement, becoming the first choice for the electrical measurement.
Features:
Display | 2000 |
Polar Indication | √ |
Low Voltage Indication | √ |
On-off Test | √ |
Over Range Indication | √ |
Data Hold | √ |
Range Choice | Manual |
Measuring Rate | 2-3t/s |
Power Supply | 9V 6F22 battery |
Weight | About 320g |
Outline Size | 235mm×90mm×40mm |
Jaw Diameter | 50mm |
Technical parameter:
Parameter | Range | Accuracy Grade | |
| N266 | N266F |
|
AC Current |
|
| ±（5.0%＋10） |
| 200A | 200A | ±（3.0%＋5） |
| 1000A | 1000A | ≤600A: ±（3.0%＋5） |
|
|
| ＞600A: not examined |
DC Voltage |
| 2V/20V/200V | ±（0.5%＋3） |
| 1000V | 1000V | ±（0.8%＋3） |
AC Voltage |
| 200V | ±（0.8%＋5） |
| 750V | 750V | ±（1.2%＋5） |
Resistance | 200Ω | 200Ω | ±（1.0%＋3） |
| 20kΩ | 2 kΩ/20 kΩ | ±（1.0%＋1） |
|
| 200 kΩ/ 2MΩ | ±（1.0%＋5） |
Temperature |
|
| ±（1.0%＋3） |
|
|
| ±（2.0%＋3） |
|
|
| ±（1.0%＋3） |
|
|
| ±（2.0%＋3） |
Frequency |
| 2kHz | ±（1.5%＋3） |
Application:
It is widely applied into laboratory, factory, radio enthusiasts and family.
Warranty:
We guarantee free reparation and change for the meter if found any unconformity with the standard, under the circumstance of that the users operate fully complying with this instructions and complete seal after delivery within 18 months.
