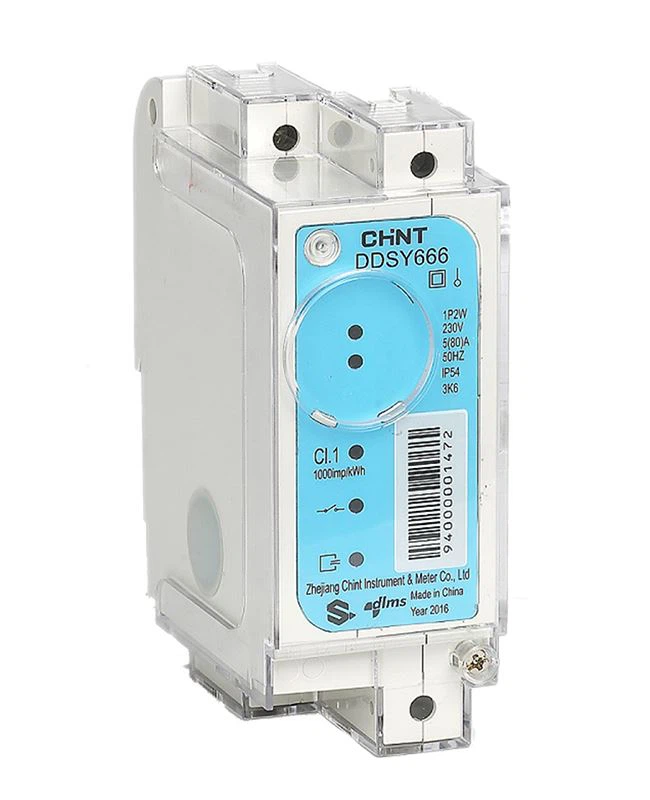

DIN-Rail Meter Single Phase
Product Features
●Balance Alarm
●Operating with IHD
●DIN- Rail
- Product Introduction
SPECIFICATIONS
Measurement ●Compliance with STS standard ●Connection type: 1P2W ●Accuracy: Class 1.0 for active | Relay ●Internal relay ●One relay / 120A ●Relay will disconnected when meter tamper (configure) |
Voltage ●Nominal voltage (Un): 110V, 120V, 220V, 230V, 240V ●Operating range: 0.7Un ~ 1.2Un ●Power consumption: ≤1.5W, 5VA | Communications ●Optical port ●PLC/M-Bus (optional) communication with IHD ●Protocol: IEC62056-21 ●Communication with DCU through PLC (optional) |
Current ● 5(60)A/5(80)A/5(100)A | Event Logs (Optional) ●Tamper detection, power quality and general events ●Configurable event alarming system ●Meter tamper state indication on IHD LCD and LED |
Frequency ●50Hz or 60Hz | Security ●Compatibility STS ●20 digits token transfer into meter through keypad or remote communication |
Real-time Clock ●Accuracy within 0.5 seconds per day at 23°C LED Display ●Energy impulse output ●Communication indication ●Relay indication | Environmental ●Operating range limit: -40°C to +75°C ●Storage range limit: -40°C to +85°C ●Relative humidity: ≤ 95%RH ●Ingress protection: IP54 |
Battery (Optional) ●Built-in Battery ●Voltage: 3.6V nominal ●Backup time: 15 years with power | Dimensions and weight ●Dimensions: 143mm ×103mm × 55.4mm ●Weight: 0.6 kg (Approx.) |
Measured Values ● Import/Export/Absolute kWh ●Instantaneous kW, Irms, Vrms ●Cumulative and credit energy |
METER DIMENSION
Units : mm
