Single Phase DIN-Rail Meter
Product Features
●Post-paid and Pre-paid configurable
●Mobile APPs payment
●Ultra Anti-Tamper
●Support LCD/CIU display
●Support meter box and meter terminal cover open detetection
●Optical port comply with IEC62056-21
●PLC/RF/ChintNet/Bluetooth module (optional)
●DLMS/COSEM compliant
●Communication with DCU and CIU
- Product Introduction
Single Phase Din-rail Meter is designed for 1P2W / 1P3W / 2P3W din-rail (bottom-in & bottom-out) users. Max current up to 90A with internal relay. The meter is integrated RF/ChintNet/PLC/Bluetooth communication module inside. The remote communication module can used for remote data collecting and load control. ChintNet which is use LoRa technology, it's longer range and higher stability, better for rural/remote performance. This smart meter can help the utility company build smart home and AMI system easily and cost-effectively.
Specifications
| Measurement ◎ Compliance with IEC/STS standard ◎ Element: 1 phase 2 wire / 1 phase 3 wire ◎ Accuracy: Class 1.0/0.5 for active | Relay ◎ Internal relay ◎ One or Two relays / 90A ◎ Relay will disconnected when meter tamper, overload, credit not enough |
| Voltage ◎ Nominal voltage (Un): 110V, 120V, 220V, 230V, 240V ◎ Operating range: 0.4Un-1.2Un ◎ Power consumption: Voltage circuit ≤ 1W, 5VA Current circuit ≤ 2VA | Communications ◎ Optical port: IEC62056-21 compliant ◎ PLC / RF / ChintNet / Bluetooth (optional) module integrated ◎ DLMS/COSEM communication protocol compliant ◎ Communication with CIU and DCU supported |
Current ◎ 5(60)A/5(80)A/5(100)A | Frequency ◎ 50Hz or 60Hz |
Event Logs (Optional) ◎ Standard event, tamper event, control event, grid event ◎ Configurable event alarming system (LED and buzzer) ◎ Meter tamper state indication on CIU LCD and LED | Real-time Clock ◎ Accuracy within 0.5 seconds per day at 23°C |
Security ◎ Compatibility STS ◎ 20 digits token transfer into meter through keypad or remote communication. | LED Display ◎ Energy impulse output ◎ Alarm indication include tampering and relay state ◎ Energy reverse for postpaid mode Balance for prepaid mode |
| Battery (Optional) ◎ Built-in battery ◎ Voltage: 3.6V nominal ◎ Backup time: 10 years with power | Environmental ◎ Operating range limit: -40°C to +75°C ◎ Storage range limit: -40°C to +85°C ◎ Relative humidity: ≤ 95%RH ◎ Ingress protection: IP54 |
Measured Values ◎ Total kWh ◎ Instantaneous kW, Irms, Vrms ◎ Cumulative and credit energy | Dimensions and Weight ◎ Dimensions: 140mm×90mm×52mm ◎ Weight: 0.6 kg (Approx.) |

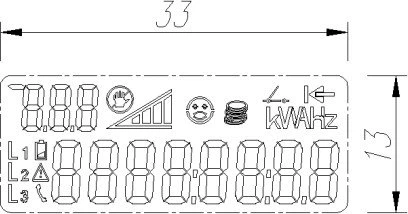

LCD Indication

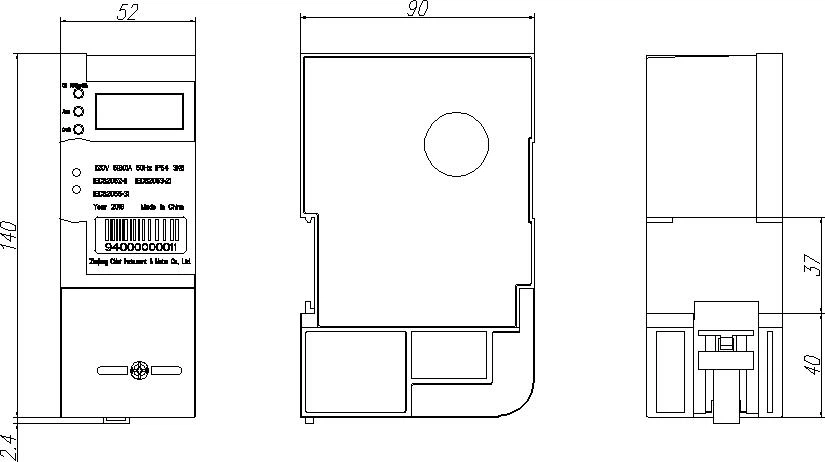

Meter Dimensions
