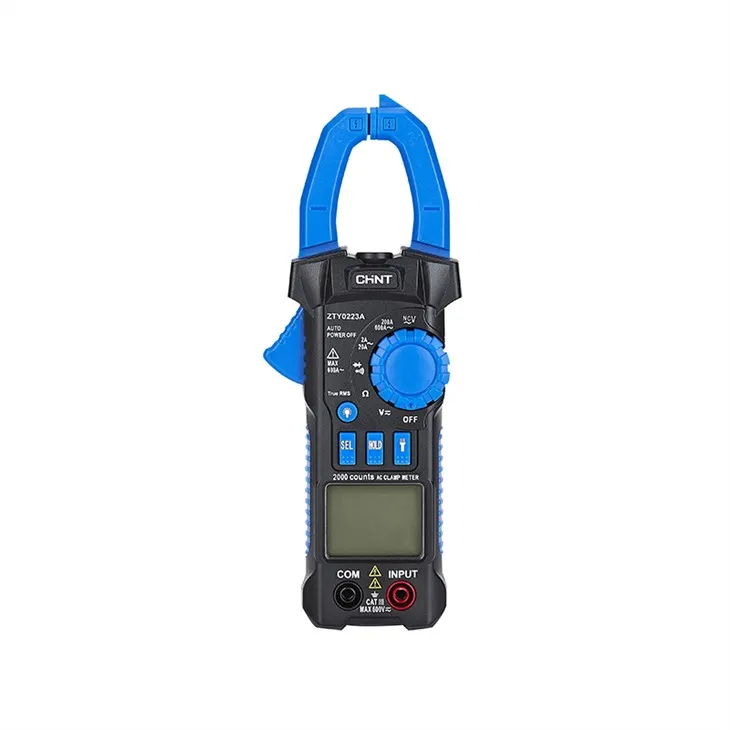

ZTY0223A Digital Clamp Meter
ZTY0223A is a stable, safe and reliable digital clamp meter. The whole circuit design takeslarge scale integrated circuit dual integral A/D convertor as the core, full range overloadprotection, compact shape, smooth line, easy to carry, which makes it as the high-performing special electricalinstrument.
- Product Introduction
The meter can measure AC/DC voltage, AC current, resistance, frequency, duty ratio, diode, circuit on and off, is the ideal tool for the majority customers to carry with.
Features
| Item | Description |
| Display | 1999 |
| Polar indication | ✔ |
| Low voltage indication | ✔ |
| On-off test | ✔ |
| Over range indication | ✔ |
| Data hold | ✔ |
| Range selection | manual operation |
| Measurement rate | 9V 6F22 battery |
| Power supply | 138mm x 69mm x 31mm |
| Weight | About 195g (without battery) |
| Dimension | 191mm x 70mm x 37mm |
| Clamp caliber | 25mm |
Technical Parameter
| Parameter | Range | Accuracy |
| DC voltage | 200mV/2V/20V/200V | ±(0.8%+3) |
| 600V | ±(1.0% +3) | |
| AC voltage | 2V/20V/200V | 土(1.2% +3) |
| 750V | ±(1.5% +3) | |
| AC current | 2A/20A/200A/600A | ±(3.0%+5) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ | ±(1.2% + 2) |
| 20MΩ | ±(2.0%+5) |
