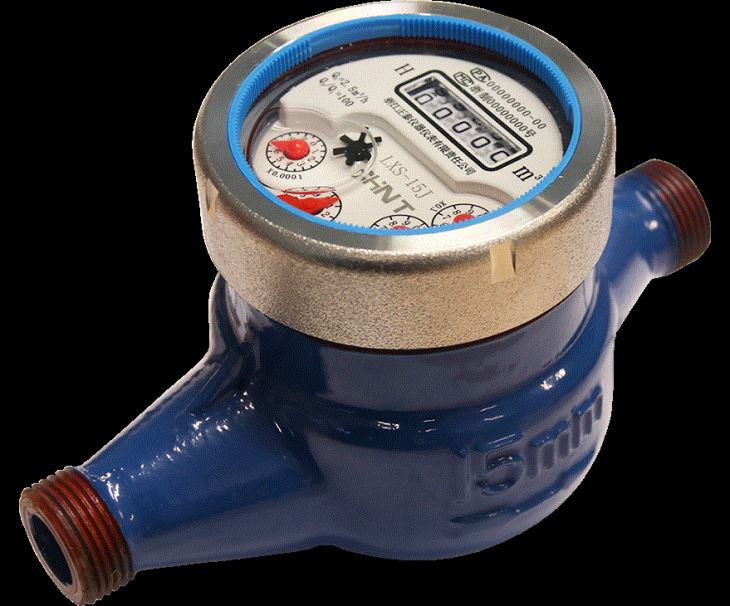

Rotary-wing Wet Cold Water Meter
Overview Chint rotor-type wet cold water meter is a measuring instrument, which is used to measure the amount of water flowing through the water pipe. It is suitable for small industrial water and household water. Large counting range, high accuracy and other performance requirements, meet the...
- Product Introduction
Overview
Chint rotor-type wet cold water meter is a measuring instrument, which is used to measure the amount of water flowing through the water pipe. It is suitable for small industrial water and household water. Large counting range, high accuracy and other performance requirements, meet the GB / T778.1 ~ 3 ~ 2007, JJG162-2009 test procedures.
Working conditions
Water temperature:0.1℃ ~ 30℃
Water pressure: △p≤1.0MPa (10bar)
Product Features
Vacuum treatment is used on counterpart. Isolation of outdoor air and water keeps the counter always clear and without atomization phenomenon.
The header part is waterproof with anti-magnetic function.
Technical Parameter | |
Items | Technical indicators |
Temperature rating | T30 |
Pressure Level | MAP10 |
Pressure loss | △p＜0.063MPa |
The maximum allowable error | a. From the lower zone, including minimum flow Q1 to excluding the demarcation flow Q2: ± 5% b. From high zone including demarcation flow Q2 to overloading flow Q4: ± 2% |
Flow parameters | ||||||
Water meter model | Nominal diameter DN（mm） |
Q3/Q1 | Overload Q4 Common Flow Q3 Boundary Flow Q2 Minimum Flow Q1
m³/h | |||
LXS-15J | 15 | 50 | 3.125 | 2.5 | 0.080 | 0.050 |
63 | 0.063 | 0.040 | ||||
80 | 0.050 | 0.031 | ||||
100 | 0.040 | 0.025 | ||||
LXS-20J | 20 | 50 | 5 | 4 | 0.128 | 0.080 |
63 | 0.10 | 0.063 | ||||
80 | 0.080 | 0.050 | ||||
100 | 0.064 | 0.040 | ||||
Main dimensions | ||||||||||
Length L1 | Length L | Width B | Height H | Connection thread | Weight | Cable | ||||
mm | d | D | kg | m | ||||||
Horizontal | 15 | 258 | 165 | 85 | 130 | R½ | G¾ | About 1.7 | 0.30 | |
20 | 298 | 195 | 85 | 130 | R¾ | G1 | About 2.0 | 0.30 | ||
