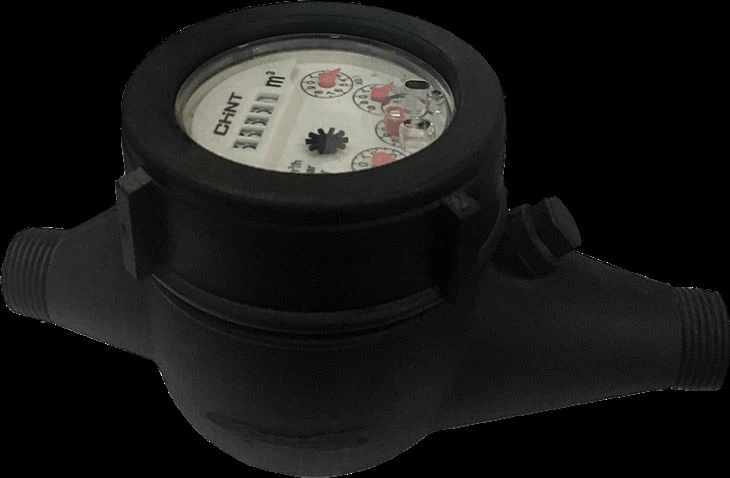

Plastic Water Meter

Plastic Water Meter

Overview Using to measure the volume of water flowing through the water pipe. Working conditions ◎ Water pressure: ≤1.0MPa (10bar) ◎ Water temperature: 0.1℃~50℃ Product Features ◎ This product adopts imported engineering plastic, belongs to the green environmental protection water meter, high...

Product Details

Overview
Using to measure the volume of water flowing through the water pipe.


Working conditions
◎ Water pressure: ≤1.0MPa (10bar)
◎ Water temperature: 0.1℃~50℃


Product Features
◎ This product adopts imported engineering plastic, belongs to the green environmental protection water meter, high intensity, health of shell, non-toxic, cast iron and cast copper shell substitute products, also has a cast iron shell and cast copper shell unmatched environmental protection.
◎ Product performance requirements meet GB/T 778.1-3-1996 cold water meter national standard (grade B); It has the function of anti-external magnetic field; The counting device adopts the print wheel and the combination of the pointer, which is clear, convenient, accurate and durable. It is a perfect water measuring instrument at present.
◎ The full set of products can be modified by high efficiency compound antioxidant and light stability, and can be used for long time in severe outdoor environment.
◎ Excellent frost resistance, the thermal conductivity is only 1/200 of the metal shell, which is more resistant to freezing than metal shell in the same environment.
◎ Corrosion resistant, non-scaling, long service life, can be exempted from fouling of the pipe and yellow spot, long-term use does not affect water quality.


Technical Parameters

Items

Technical indicators

Temperature rating

T30

Pressure Level

MAP10

Pressure loss

p0.063Mpa



The maximum   allowable error

High areaQ2QQ4):±2%

Low areaQ1QQ2):±5%


Flow parameters

Water meter model

Nominal diameter

DNmm



Q3/Q1

Overload Q4

Common Flow Q3

Boundary Flow Q2

Minimum Flow Q1

m³/h

LXSG-15

15

50

3.125

2.5

0.080

0.050

63

0.063

0.040

80

0.050

0.031

100

0.040

0.025

LXSG-20

20

50

5

4

0.128

0.080

63

0.10

0.063

80

0.080

0.050

100

0.064

0.040


Main dimensions

Nominal   Diameter

Length   L1

Length

 L

Width

 B

Height

 H

Connection   Thread

Weight

Cable

mm

d

D

kg

m

Horizontal

15

258

165

85

130

R1/2

G3/4

About   1.7

0.30

20

298

195

85

130

R3/4

G1

About   2.0

0.30
