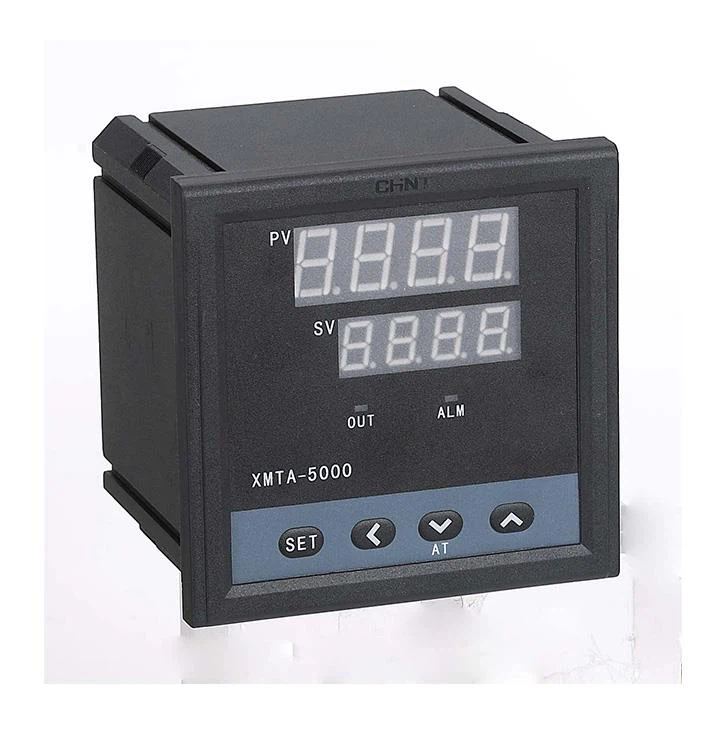

XMT-5000 series digital indicating controllers

Summary&application:

XMT-5000 series digital indicating controllers have variety of advantages, such as high accuracy, easy installation, good reliability, strong anti-vibration and anti-interference ability, etc. With various of external sizes and complete control mode, it can be widely applied into temperature measurement and automation control within -200℃to 1800℃ for those industries including plastic, rubber, packing, food machinery, metallurgy, refrigeration, chemical, medical treatment, etc. It can realize measurement and control for the parameters such as pressure, flow, liquid position, humidity, etc. coordinated with the corresponding sensor.


1. Main functions and characteristics:

◆Support ten types of free switching such as hot resistance, thermocouple, voltage, current, etc. and the measuring range and display resolution can be set.

◆The input adopts digital correction system, the built-in usually use thermocouple and hot-resistance non-linear correction table for accurate measurement.

◆The potentiometer control and PID control can be freely switched, and the positive& negative effect can be set.

◆Three sets of relay output functions can be customized.



2. Model composition and representative meanings:



3. Input specification and measuring range:

Input type

Graduation

Measuring range

Thermocouple (TC)

K

-50~+1350℃

S

-50~+1750℃

E

-50~+800℃

J

-50~+1000℃

Hot resistance (RTD)

Cu50

-50~+150℃

Pt100

-200~+850℃

DC voltage(U)

0V~5V

-1999~+1999 user-defined

1V~5V

DC current (I)

0mA~20mA

4mA~20mA


4. Main technical performance and parameters:

Item

Type index

Basic error

±0.5%F·S±1 word

Sampling period

<0.3s

Control mode

Position control (positive/negative effect and switch difference can be set)
PID control(positive/negative effect and proportional band, integration time, differential time, output cycle and overshoot

suppression factor can be set)

Alarm mode

Have upper-limit alarm and lower-limit alarm, can realize single way alarm output, can set power conservation to avoid alarm

malfunction when the meter is power on
Relay contact switch output: 30VDC/5A, 250VAC/2A
SCR zero passage trigger signal output: 85V~264VAC, 50/60Hz, can trigger 5A~500A bidirectional SCR or two anti-parallel single   SCR.

Output specification

Solid state relay drive voltage output: 12VDC/25mA

Work power supply

198V~242V, 50Hz/60Hz, consumption<5VA


Note:

F·S is the range of the meter.


5. External  and installation size:
(unit:mm)

Model

Panel size

Shell size

Cutting size

XMTA series

96×96

90×90×80

92×92

XMTG series

48×48

44×44×100

45×45

XMTD series

72×72

66×66×80

68×68

XMTH series

160×80

150×75×100

152×76

XMTE series

48×96

44×90×100

45×92

XMTS series

80×160

75×150×100

76×152

XMTS series

96×48

90×44×100

92×45
